CNC MILLING MACHINE MX-5SL
Bare Machine Design Drawings Optomechanical design
World-class precision components
Mihanna Casting Technology
Ball screw Linear slide rail
Spindle made by KENTURN
HERG Lubrication Pump
Pull rod Locking machine
Coupling made by NBK Japan
Numerical control system SIMMENS 808D
HDW Tool magazine
High precision chuck assembly
Milling machine accessories meet different processing needs
15pic BT40 Chuck combination
►φ03/4/5/6/8
►φ10/12/14/15
►16/18/20
100pic drilling bit
► Different size
► Suitable for punching
QM-160 Precise Flat nose pliers
►Super clamping force
►Precision and durability
►Famous brand
58 Precision combination pressure plate suit
►Super clamping force
►Precision persistence
►German quality
Edge finder
►Quick and convenient
►Finding Edge easy
Environmental protection Protection cover
► Protecting workers'safety
► Protect the environment
►Beautiful
Integral drill chuck
► Integral
► Automatic locking
► Size :Φ O.5~16mm
Machine tool isolator
► Super Supporting Force
► Stable shock absorption
► Durable
Cooling system
► Delay cutter life
► Oil chip separation
► Large water yield
PRESENT NINE CONSUMABLES TO SOLVE YOUR WORRIES
Present nine consumables to solve your worries
1.Pull nail 7pic
2.Floodlight 1set
3.Chip retaining rubber 1set
4.Locking handle 1pic
5.Handheld adjuster 1set
6.Unlock Tool Button 1pic
7.Outlet pipe 1pic
8.Synchronous belt 1pic
9.Hydraulic oil 1 barrels
Electrical safety
Feed shaft Spindle tool Rate adjustment knob
Graphic programming Colour display screen
Multilingual Interface
Shortcut button
Graphic programming
Multiplying knob
International brand

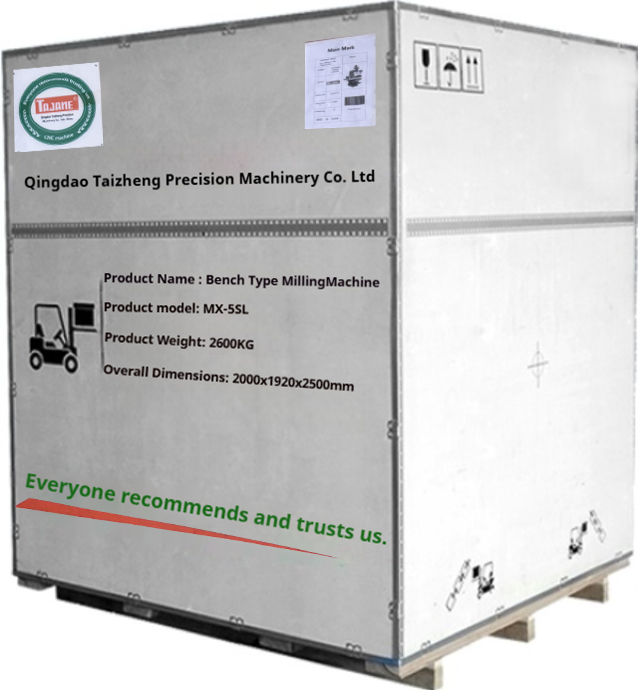

packing
Steel belt fastener Wood packaging ,
Locking connection Firm tensile strength.
Free transportation in China
Undertaking transportation insurance.
Perfect after-sales service
Mechanical Parts and Electrical Appliances
Guaranteed for 12 Months
| Bed dimension | 1473 x 320mm |
| X axis of worktable stroke | 950mm/980mm(limit stroke) |
| Sliding saddle stroke (Y axis) | 380mm/400mm(limit stroke) |
| Spindle box stroke (Z axis) | 415mm |
| Elevator manual stroke | 380mm |
| Table load bearing | 280KG(full stroke)/350KG(Middle of the working table400mm) |
| T-slot size | 3 x 16 x 75mm |
| Principal axis | BT40- ∅120 Taiwan Keychun |
| Main shaft speed | 8000rpm |
| Spindle power | 3.75KW(rated) 5.5KW(overload) |
| voltage | 380V |
| frequency | 50/60 |
| Positioning accuracy / repeat positioning accuracy | Middle of the working table400mm:0.009mm/±0.003mm |
| Full stroke950mm:0.02mm、arbitrary300mm/0.009mm | |
| Feed motor power | X、Y/7Nm Z/15Nm with brake |
| Fastest moving speed | X, Y axis/12m/min Z-axis/18m/min |
| Ball wire rod type X shaft | 3208 Taiwan original |
| Ball wire rod type Y shaft | 3208 Taiwan original |
| Ball wire rod model Z shaft | 3205 Taiwan original |
| Rail X axis | 35Ball wire track wholly owned by Taiwan |
| Line rail Y axis | 35Ball wire track wholly owned by Taiwan |
| Rail Z axis | 30Ball wire track wholly owned by Taiwan |
| clutch | NBKJapanese |
| Knife cylinder | Haocheng Taiwan |
| tool magazine | 12Bucket type Taiwan brand |
| system | Siemens, Germany808D system |
| Machine tool shape dimension | 2000x1920x2500 |
| weight | 2600kg |
| Positioning accuracy X-directional full stroke / repeat positioning accuracy | 0.02mm/0.012mm |
| Positioning accuracy / repeat location of 400mm in the middle of workbench | 0.009mm/0.006mm |
Accessories
One piece of precision edge finder
QH160 precision flat pliers
58-piece set of M12 combined pressure plate
15-piece set of high-precision BT40 chuck set
A set of high-precision BT40 powerful integrated drill chuck
A set of environmentally friendly protective covers
Random wearing parts (gift)
Anti-peeling set
A set of handle pull studs
Two locking handles for workbench
A barrel of special hydraulic oil for the knife cylinder
Special accessories
Grating ruler
chipper
CNC rotary table
